Cold Rolled Steel Tubing
Round, square, oval and elliptical tube in 0.6 mm to 2.0 mm wall
- BS 1717
- BS EN 10305-3
- BS EN 10305-5
- EN 10296-1
- ISO 9001
- ISO 14001
- ISO 45001
- CE
Cold rolled tube is the light-wall end of the range: thin, clean-surfaced and dimensionally tight, made for work that is formed after it leaves us rather than simply installed.
It is rolled in five section shapes — round, square, rectangular, oval and elliptical — from 0.60 mm to 2.00 mm wall. The surface is finished to take chrome plating directly, and the material is selected so it bends and draws without splitting at the weld.
Round tube runs to BS 1717:1983, BS EN 10305-3:2010 and EN 10296-1:2003; square and rectangular to BS EN 10305-5:2010. Oval and elliptical are made to our own standard, there being no published one for them. The works is certified to ISO 9001, ISO 14001 and ISO 45001 and CE marked, and every bundle carries a guaranteed tube count.
Applications
- Automotive and motorcycle components
- Bicycle frames and fittings
- Transformer manufacture
- Fans, furniture and tent frames
- Chrome-plated and formed parts
Sectors supplied
- Automotive
- Furniture manufacture
- Appliance manufacture
- Fabrication
Specifications
Sizes and weights
Figures as published in our catalogue. Tolerances are held to the standard named on each table.
CR round tube — weight by wall thickness
BS 1717:1983, BS EN 10305-3:2010 & EN 10296-1:2003 (formerly BS 6323-5:1982)
| OD mm | Per bundle | Wall thickness (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| 0.6 | 0.7 | 0.9 | 1.0 | 1.2 | 1.6 | 2.0 | ||
| 9.00 | 394 | 0.124 | 0.143 | 0.180 | — | 0.231 | — | — |
| 10.00 | 351 | 0.140 | 0.161 | 0.202 | — | 0.260 | — | — |
| 12.70 | 271 | 0.179 | 0.207 | 0.262 | 0.289 | 0.340 | — | — |
| 15.90 | 271 | 0.226 | 0.262 | 0.333 | 0.367 | 0.435 | 0.564 | 0.686 |
| 16.00 | 200 | — | — | — | — | — | — | 0.691 |
| 17.50 | 271 | — | — | — | — | 0.482 | 0.627 | 0.765 |
| 19.05 | 271 | 0.273 | 0.317 | 0.403 | 0.445 | 0.528 | 0.689 | 0.841 |
| 20.60 | 271 | — | — | — | — | — | 0.750 | 0.917 |
| 22.00 | 217 | — | — | — | — | — | 0.805 | — |
| 22.20 | 217 | — | 0.371 | 0.473 | — | 0.621 | 0.813 | 0.996 |
| 23.80 | 169 | — | — | — | — | — | 0.876 | — |
| 25.40 | 217 | 0.367 | 0.426 | 0.544 | 0.602 | 0.716 | 0.939 | 1.154 |
| 28.60 | 169 | — | — | 0.615 | 0.681 | 0.811 | 1.065 | — |
| 30.00 | 169 | — | — | 0.646 | — | 0.852 | 1.121 | — |
| 31.80 | 169 | — | 0.537 | 0.686 | 0.760 | 0.906 | 1.192 | 1.470 |
| 35.00 | 127 | — | — | — | — | 1.000 | 1.318 | — |
| 38.10 | 91 | — | — | 0.826 | — | 1.092 | 1.440 | — |
| 42.20 | 61 | — | — | 0.917 | — | 1.213 | 1.602 | — |
| 48.10 | 61 | — | — | 1.048 | — | 1.388 | 1.835 | — |
| 60.30 | 61 | — | — | 1.318 | — | 1.749 | — | — |
| 63.50 | 61 | — | — | — | — | 1.844 | 2.442 | — |
| 73.02 | 37 | — | — | — | — | 2.125 | 2.818 | — |
| 75.90 | 37 | — | — | — | — | 2.211 | 2.932 | — |
Outside diameter in mm, figures in kilograms per metre. A dash means that wall is not rolled in that diameter.
CR square tube — weight by wall thickness
BS EN 10305-5:2010 (formerly BS 6323-5:1982)
| Size mm | Per bundle | Wall thickness (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| 0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.60 | ||
| 10 × 10 | 225 | 0.179 | 0.207 | 0.235 | 0.262 | 0.289 | — | — |
| 12 × 12 | 225 | 0.226 | 0.262 | 0.298 | 0.333 | 0.367 | 0.435 | 0.564 |
| 15 × 15 | 225 | 0.273 | 0.317 | 0.360 | 0.403 | 0.445 | 0.528 | 0.689 |
| 20 × 20 | 225 | 0.367 | 0.426 | 0.485 | 0.544 | 0.602 | 0.716 | 0.939 |
| 25 × 25 | 144 | — | 0.537 | 0.612 | 0.686 | 0.760 | 0.906 | 1.192 |
| 30 × 30 | 100 | — | 0.646 | 0.736 | 0.826 | 0.915 | 1.092 | 1.440 |
| 38 × 38 | 100 | — | — | 0.933 | 1.048 | 1.162 | 1.388 | 1.835 |
| 50 × 50 | 100 | — | — | 1.240 | 1.390 | — | 1.844 | 2.442 |
Section size in mm, figures in kilograms per metre. A dash means that wall is not rolled in that size.
CR rectangular tube — weight by wall thickness
BS EN 10305-5:2010 (formerly BS 6323-5:1982)
| Size mm | Per bundle | Wall thickness (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| 0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.60 | ||
| 10 × 20 | 294 | — | 0.317 | 0.360 | 0.403 | 0.445 | 0.528 | — |
| 12 × 38 | 200 | — | 0.537 | 0.612 | 0.686 | 0.760 | 0.906 | — |
| 15 × 30 | 150 | — | — | — | 0.615 | — | 0.811 | — |
| 20 × 40 | 150 | — | 0.646 | 0.736 | 0.826 | 0.915 | 1.092 | 1.440 |
| 25 × 40 | 150 | — | — | — | — | — | 1.213 | 1.602 |
| 25 × 50 | 96 | — | — | 0.933 | 1.048 | 1.162 | 1.388 | 1.835 |
| 30 × 50 | 96 | — | — | — | 1.048 | — | — | — |
| 30 × 60 | 117 | — | — | 1.109 | 1.245 | 1.381 | 1.651 | 2.186 |
| 40 × 80 | 70 | — | — | 1.482 | 1.665 | 1.847 | 2.211 | 2.932 |
Section size in mm, figures in kilograms per metre. A dash means that wall is not rolled in that size.
CR oval tube — weight by wall thickness
Conforming to IIL standard
| Size mm | Per bundle | Wall thickness (mm) | |||
|---|---|---|---|---|---|
| 0.90 | 1.20 | 1.60 | 2.00 | ||
| 16 × 30 | 200 | 0.544 | 0.716 | — | — |
| 16 × 40 | 200 | — | 0.906 | 1.192 | 1.470 |
| 30 × 50 | 100 | — | 1.213 | 1.602 | 1.983 |
Section size in mm, figures in kilograms per metre.
CR elliptical tube — weight by wall thickness
Conforming to IIL standard
| Size mm | Per bundle | Wall thickness (mm) | ||
|---|---|---|---|---|
| 0.90 | 1.20 | 1.60 | ||
| 13 × 23 | 200 | 0.403 | 0.528 | 0.689 |
| 19 × 42 | 200 | 0.686 | 0.906 | — |
| 24 × 56 | 100 | — | 1.213 | — |
Section size in mm, figures in kilograms per metre.
Gallery

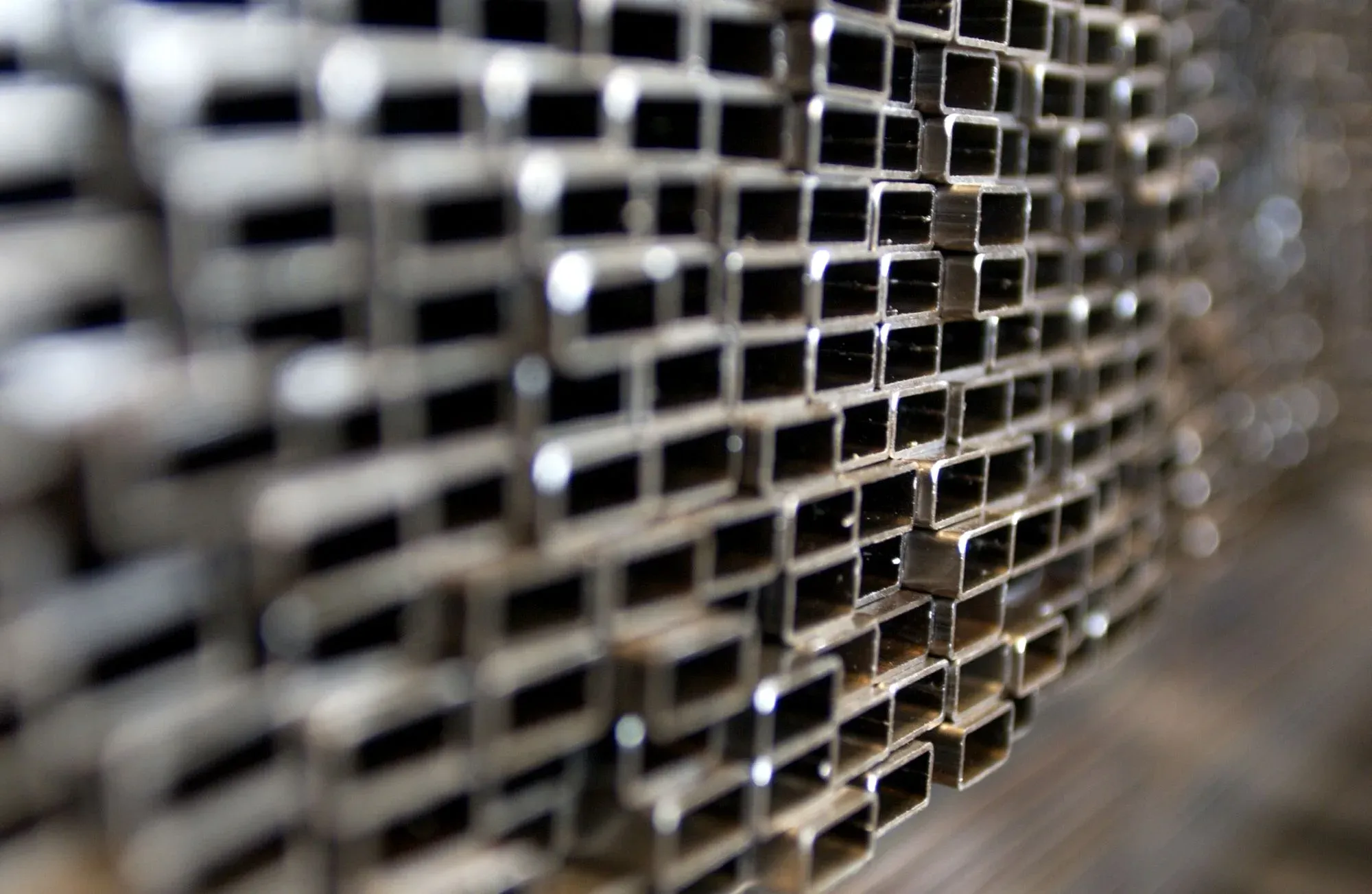

CR Tubes in production
