Galvanized Iron (GI) Pipe
Hot-dipped galvanized to BS EN 10255:2004 in Grades L, M and H
- BS EN 10255:2004
- BS EN 10226:2004
- ASTM A53
- ISO 9001
Hot-dipped galvanized iron pipe manufactured in accordance with BS and ASTM standards. We hold attention on each stage of the process — manufacturing, galvanizing and finishing — with quality control and inspection at every step.
The range covers Grade L, Grade M and Grade H to BS EN 10255:2004 (formerly BS 1387:1985) — Grade L from 15 to 100 mm, Grade M from 15 to 150 mm and Grade H from 40 to 150 mm nominal bore. Threading is cut to BS EN 10226:2004.
GI pipe is our most-specified product for potable water: the zinc coating carries it well past the service life of black pipe in the same duty, and it will hold hydro pressure up to 50 bar.
Applications
- Drinking water supply networks
- Domestic plumbing risers and mains
- Irrigation and tube-well lines
- Fire-fighting reticulation
- Low-pressure gas distribution
- Structural and fencing work
Sectors supplied
- Municipal water
- Construction
- Agriculture
- Power sector
Specifications
Sizes and weights
Figures as published in our catalogue. Tolerances are held to the standard named on each table.
GI Pipe — Grade "L"
BS EN 10255:2004 (formerly "L" of BS 1387:1985)
| Nominal dia | Outside diameter | Wall thickness mm | Black pipe weight kg/m | ||
|---|---|---|---|---|---|
| mm | in | Max mm | Min mm | ||
| 15 | 1/2" | 21.40 | 21.00 | 2.00 | 0.95 |
| 20 | 3/4" | 26.90 | 26.40 | 2.30 | 1.38 |
| 25 | 1" | 33.80 | 33.20 | 2.60 | 1.98 |
| 32 | 1 1/4" | 42.50 | 41.90 | 2.60 | 2.54 |
| 40 | 1 1/2" | 48.50 | 47.80 | 2.90 | 3.23 |
| 50 | 2" | 60.20 | 59.60 | 2.90 | 4.08 |
| 65 | 2 1/2" | 76.00 | 75.20 | 3.20 | 5.71 |
| 80 | 3" | 88.70 | 87.90 | 3.20 | 6.72 |
| 100 | 4" | 113.90 | 113.00 | 3.60 | 9.75 |
GI Pipe — Grade "M"
BS EN 10255:2004 (formerly "M" of BS 1387:1985)
| Nominal dia | Outside diameter | Wall thickness mm | Black pipe weight kg/m | ||
|---|---|---|---|---|---|
| mm | in | Max mm | Min mm | ||
| 15 | 1/2" | 21.80 | 21.00 | 2.60 | 1.21 |
| 20 | 3/4" | 27.30 | 26.50 | 2.60 | 1.56 |
| 25 | 1" | 34.20 | 33.30 | 3.20 | 2.41 |
| 32 | 1 1/4" | 42.90 | 42.00 | 3.20 | 3.10 |
| 40 | 1 1/2" | 48.80 | 47.90 | 3.20 | 3.56 |
| 50 | 2" | 60.80 | 59.70 | 3.60 | 5.03 |
| 65 | 2 1/2" | 76.60 | 75.30 | 3.60 | 6.42 |
| 80 | 3" | 89.50 | 88.00 | 4.00 | 8.36 |
| 100 | 4" | 115.00 | 113.10 | 4.50 | 12.16 |
| 125 | 5" | 140.80 | 138.50 | 5.00 | 16.60 |
| 150 | 6" | 166.50 | 163.90 | 5.00 | 19.75 |
GI Pipe — Grade "H"
BS EN 10255:2004 (formerly "H" of BS 1387:1985)
| Nominal dia | Outside diameter | Wall thickness mm | Black pipe weight kg/m | ||
|---|---|---|---|---|---|
| mm | in | Max mm | Min mm | ||
| 40 | 1 1/2" | 48.80 | 47.90 | 4.0 | 4.37 |
| 50 | 2" | 60.80 | 59.70 | 4.5 | 6.19 |
| 65 | 2 1/2" | 76.60 | 75.30 | 4.5 | 7.93 |
| 80 | 3" | 89.50 | 88.00 | 5.0 | 10.30 |
| 100 | 4" | 115.00 | 113.10 | 5.4 | 14.50 |
| 125 | 5" | 140.80 | 138.50 | 5.4 | 17.88 |
| 150 | 6" | 166.50 | 163.90 | 5.4 | 21.27 |
Galvanized iron pipe to ASTM A-53 Sch 40 also available, subject to enquiry.
Gallery

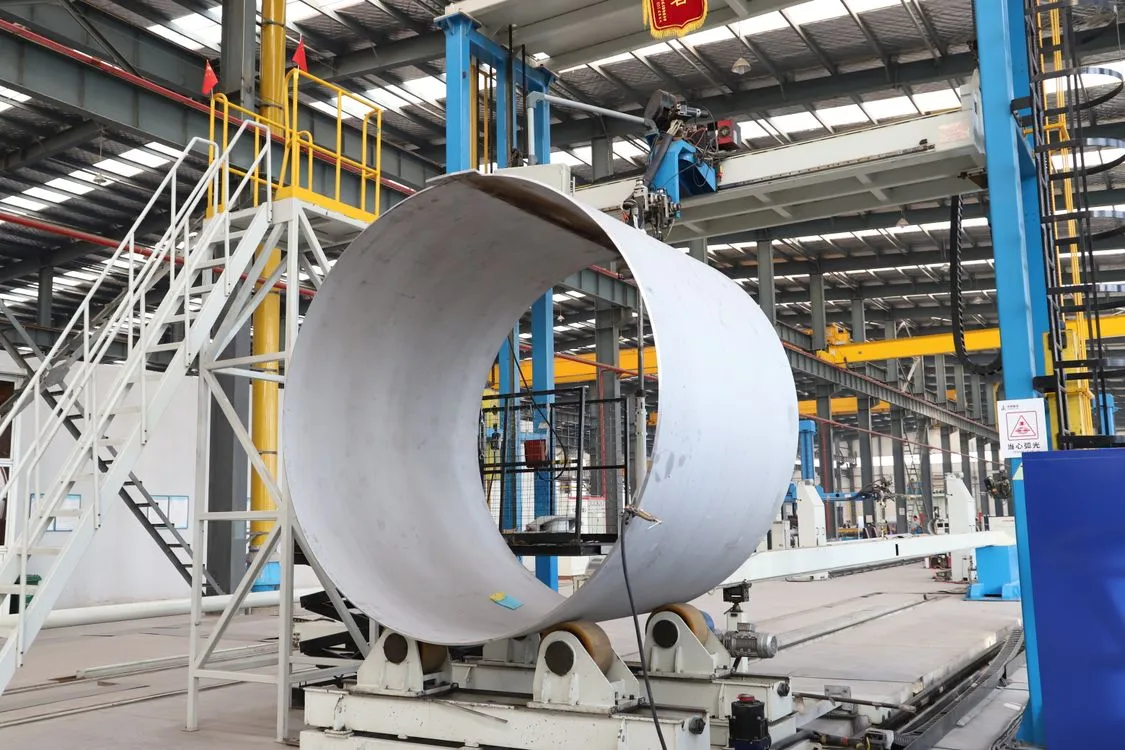

GI Pipe in production
