Product
Square & Rectangular Hollow Section
Cold rolled and hot rolled ERW tube for structure and furniture
- ASTM A500 Gr. A/B
- EN 10219
- BS 6323 Pt 1 & 5
- IS 4923
- ISO 9001
We manufacture hot rolled and cold rolled ERW rectangular and square hollow steel tube and conduit, used widely in furniture, buildings, steel houses and the construction industry generally.
The properties come from the input: we use high-grade prime, soft mild steel coil, imported from established suppliers. That is what lets us guarantee shape — roundness on round tube, square edges on square and rectangular sections — and what makes the material behave predictably when it is bent or drawn.
The range is exported against a variety of national and international standards, and special sizes in square and rectangular tube are made to order.
Applications
- Structural steel framing
- Furniture manufacture
- Steel houses and prefabricated buildings
- Grilles, gates and railings
- Conduit
- General fabrication
Sectors supplied
- Construction
- Furniture manufacture
- Fabrication
- Pre-engineered buildings
Specifications
Sizes and weights
Figures as published in our catalogue. Tolerances are held to the standard named on each table.
Square Hollow Section — mass in kg/m
ASTM A500 Gr. A/B, EN 10219, BS 6323, IS 4923
| Size mm | Wall thickness — mass in kg/m | |||||
|---|---|---|---|---|---|---|
| 1.2 | 1.6 | 2.0 | 2.5 | 3.0 | 4.0 | |
| 20 × 20 | 0.689 | 0.890 | 1.076 | 1.289 | — | — |
| 25 × 25 | 0.877 | 1.141 | 1.390 | 1.682 | 1.951 | — |
| 30 × 30 | 1.066 | 1.392 | 1.704 | 2.074 | 2.422 | — |
| 38 × 38 | 1.367 | 1.794 | 2.207 | 2.702 | 3.175 | 4.054 |
| 40 × 40 | 1.443 | 1.895 | 2.332 | 2.859 | 3.364 | 4.306 |
| 50 × 50 | 1.819 | 2.397 | 2.960 | 3.644 | 4.306 | 5.562 |
| 60 × 60 | 2.196 | 2.899 | 3.588 | 4.429 | 5.248 | 6.818 |
| 75 × 75 | 2.761 | 3.653 | 4.530 | 5.607 | 6.661 | 8.702 |
| 80 × 80 | 2.950 | 3.904 | 4.844 | 5.999 | 7.132 | 9.330 |
| 100 × 100 | 3.703 | 4.909 | 6.100 | 7.569 | 9.016 | 11.842 |
Outer corner radius taken as 1.5 × wall, the cold-formed convention. Sizes outside this range are rolled to order — confirm the die set with the sales office before specifying.
Rectangular Hollow Section — mass in kg/m
ASTM A500 Gr. A/B, EN 10219, BS 6323, IS 4923
| Size mm | Wall thickness — mass in kg/m | |||||
|---|---|---|---|---|---|---|
| 1.2 | 1.6 | 2.0 | 2.5 | 3.0 | 4.0 | |
| 20 × 40 | 1.066 | 1.392 | 1.704 | 2.074 | — | — |
| 25 × 50 | 1.348 | 1.769 | 2.175 | 2.663 | 3.128 | — |
| 30 × 60 | 1.631 | 2.146 | 2.646 | 3.252 | 3.835 | — |
| 38 × 76 | 2.083 | 2.749 | 3.400 | 4.194 | 4.965 | 6.441 |
| 40 × 80 | 2.196 | 2.899 | 3.588 | 4.429 | 5.248 | 6.818 |
| 50 × 100 | 2.761 | 3.653 | 4.530 | 5.607 | 6.661 | 8.702 |
| 60 × 120 | 3.327 | 4.407 | 5.472 | 6.784 | 8.074 | 10.586 |
Same basis as the square chart: corner radius 1.5 × wall. Sizes are quoted depth × width; other combinations are rolled to order.
Gallery

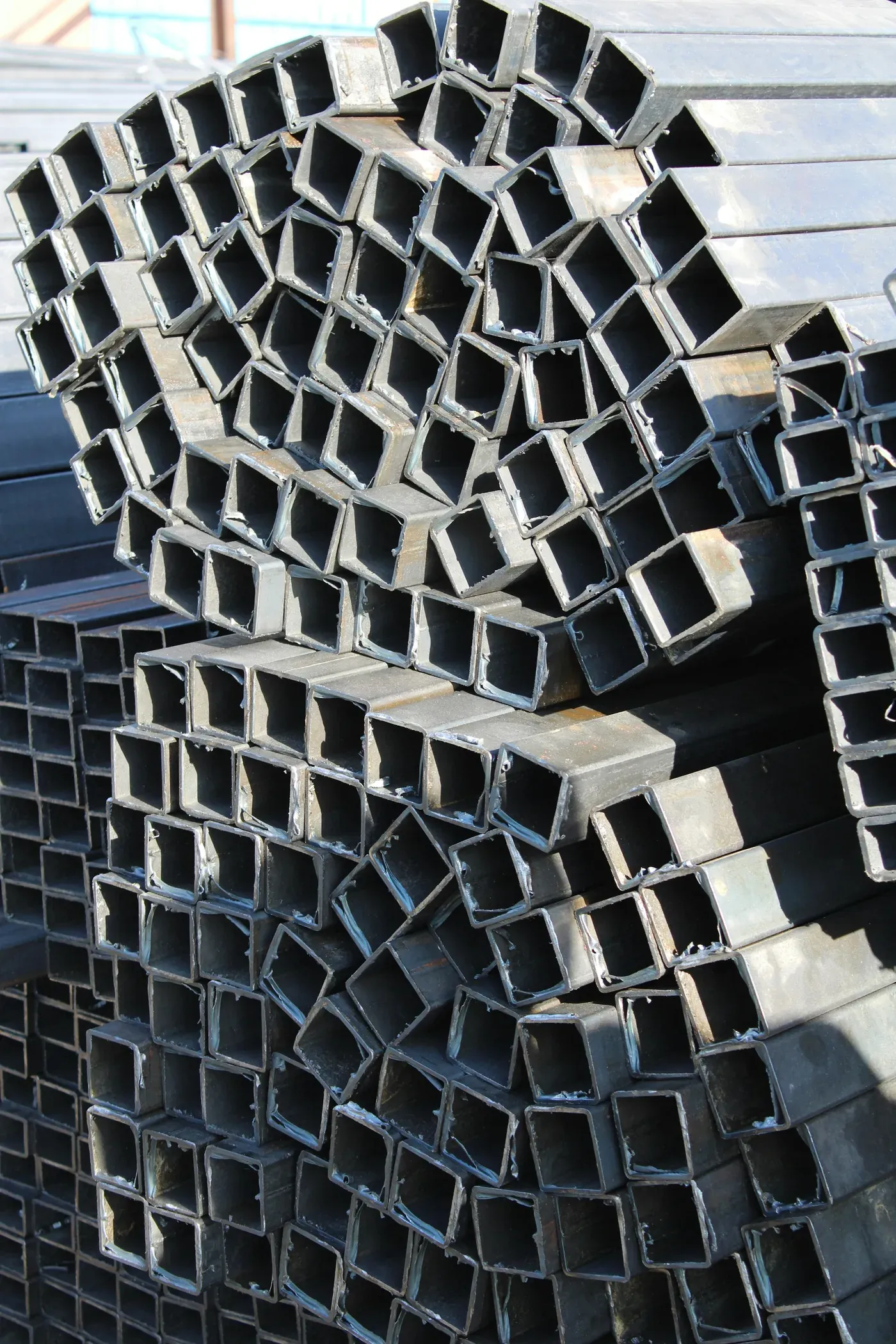

Hollow Section in production
