MS Pipe
Schedule 10, 20, 40 and 80 to ASTM A53, Grade A and Grade B
Electric resistance welded mild steel pipe from 1/2" to 16" diameter in wall thicknesses to 12 mm, hydro-tested and supplied against ASTM A53 in Grade A and Grade B.
Specifications
Product
Scaffolding Tubes
Type 1 and Type 2 to BS EN 39:2001 — safety first
- BS EN 39:2001
Steel scaffolding tube has completely replaced timber and bamboo on site, for the obvious reasons: load carrying capacity and strength. Ours are used for supporting workers, materials, tools and tackle through construction, alteration, demolition and maintenance work.
Because it is workers standing on this material, we manufacture it only from prime quality high-strength steel and certify it to BS EN 39:2001. Both light (Type 1, 3.0 mm) and heavy (Type 2, 4.0 mm) tube are stocked.
Lengths are cut to a client’s requirement on request, and the tube pairs with standard drop-forged and pressed couplers.
Applications
- Construction site access scaffolds
- Industrial repair and maintenance
- Petrochemical plant shutdowns
- Infrastructure projects
- Support platforms and formwork
- Demolition works
Sectors supplied
- Construction
- Petrochemical
- Power sector
- Infrastructure
Specifications
Sizes and weights
Figures as published in our catalogue. Tolerances are held to the standard named on each table.
Scaffolding Tubes — Type 1 and Type 2
BS EN 39:2001
| Type | Nominal dia in | Outside diameter | Wall thickness mm | Black pipe weight kg/m | |
|---|---|---|---|---|---|
| Max mm | Min mm | ||||
| Type 1 | 1 1/2" | 48.3 | 47.8 | 3.0 | 3.33 |
| Type 2 | 1 1/2" | 48.3 | 47.8 | 4.0 | 4.37 |
Available in various lengths, subject to enquiry.
Gallery

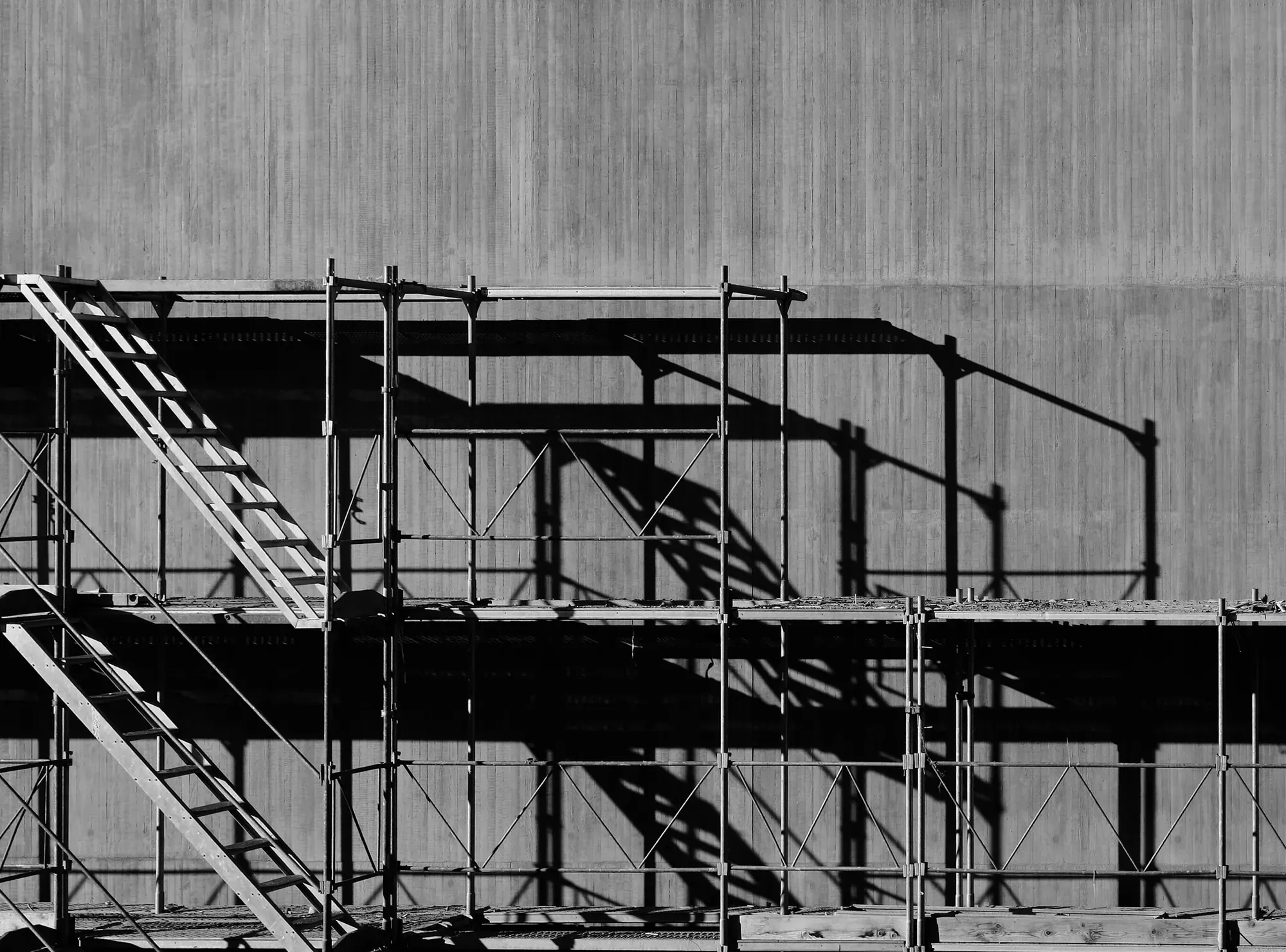

Scaffolding in production
More from the range
Other products
GI Pipe
Hot-dipped galvanized to BS EN 10255:2004 in Grades L, M and H
Hot-dipped galvanized iron pipe in Grades L, M and H, threaded to BS EN 10226:2004, rated to 50 bar hydro pressure and suitable for drinking water.
Specifications
CR Tubes
Round, square, oval and elliptical tube in 0.6 mm to 2.0 mm wall
Cold rolled steel tube in round, square, rectangular, oval and elliptical sections, 0.6 mm to 2.0 mm wall, made to BS 1717 and BS EN 10305-3 and finished for plating, bending and drawing.
SpecificationsNeed a quotation?
Send us your sizes, grades and quantities and we will come back with a price and a lead time.
